D70S多功能数据顯示器的详细资料：
D70S/H/I
142
925.1142 925.5609
mini-USB
926.6001

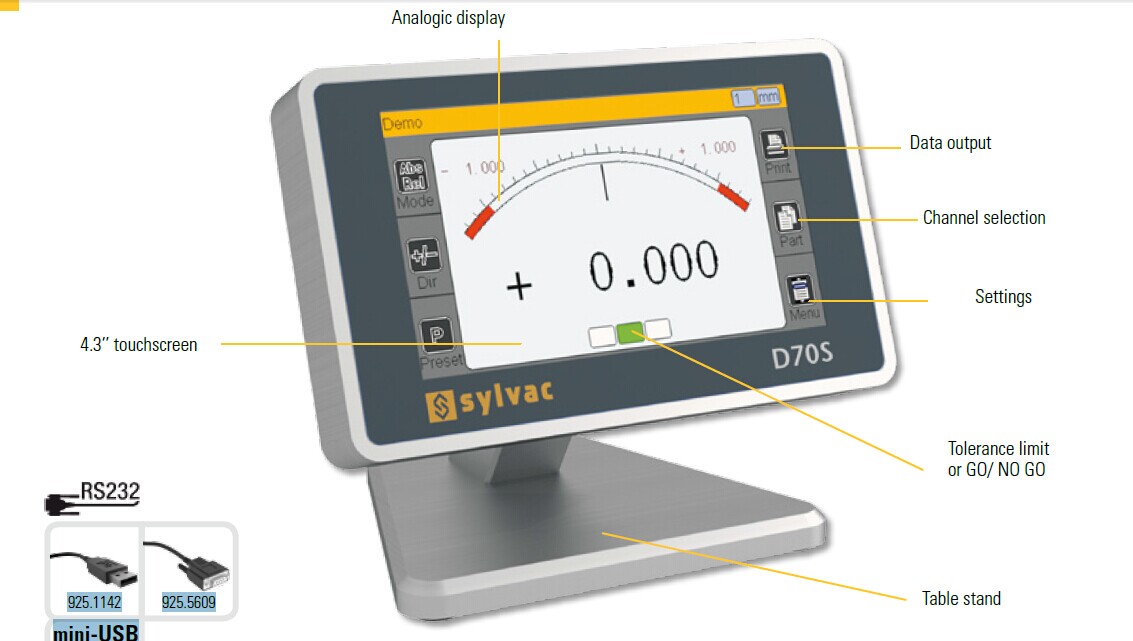

Digital display
DESCRIPTION

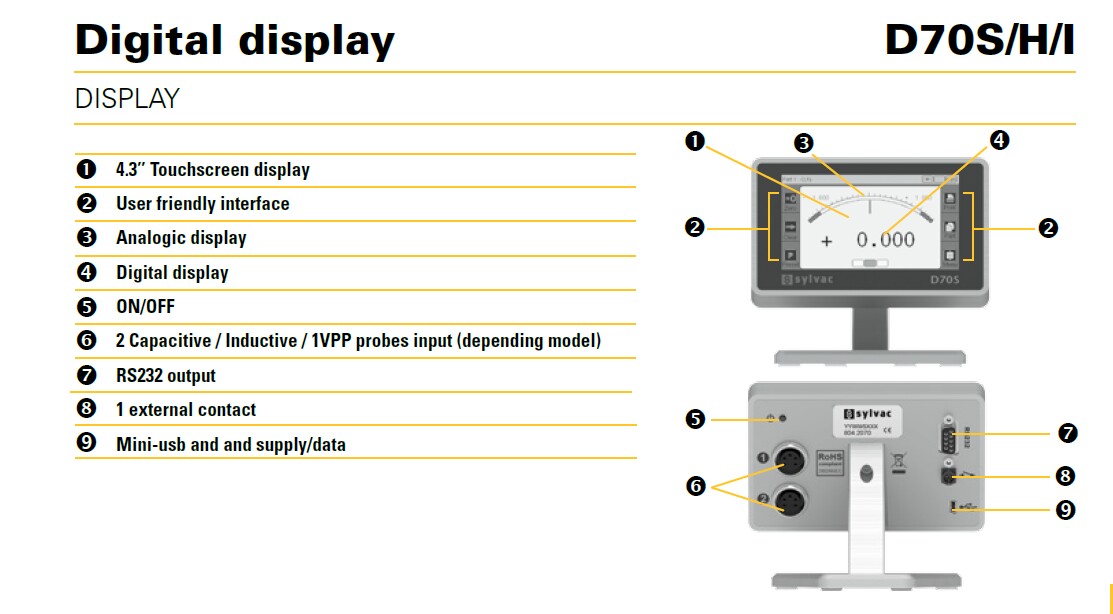

• 4’’3 touch screen display

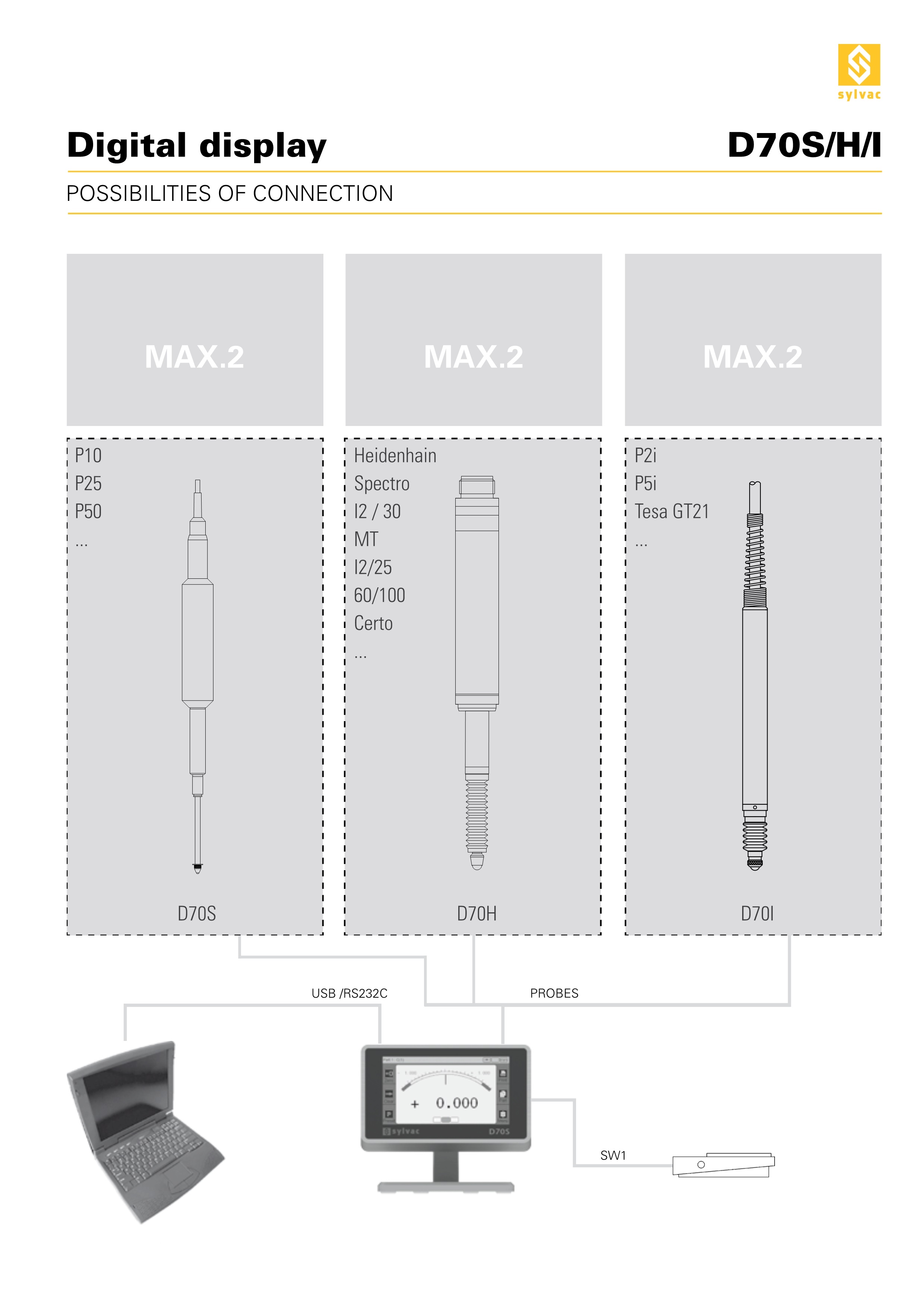

• Available in 3 versions:
- D70S for Sylvac capacitive probes
- D70I for Sylvac inductive probes (also compatible with Tesa and Mahr probes)
- D70H for Heidenhain ST/MT probes (Mitutoyo and Magescale probes with adapter)
• All versions with 2 probe inputs
• Display resolution selectable up to 0.00001 mm
• Simple or double display with bargraph, needle or no-tolerances
• Probe’s combination : (C1, C2, C1-C2 …)
• Direct measurement or Min, Max, Average, Max-Min…
• User friendly interface
• Very robust construction (Aluminium)
• USB connection «Keyboard» unidirectional and RS232 bidirectional
• No driver, no software to be installed
• Compatibility Excel and SPC
• Powered by the computer when connected by USB cable
142
925.1142 925.5609
mini-USB
926.6001
Digital display
DESCRIPTION
• 4’’3 touch screen display
• Available in 3 versions:
- D70S for Sylvac capacitive probes
- D70I for Sylvac inductive probes (also compatible with Tesa and Mahr probes)
- D70H for Heidenhain ST/MT probes (Mitutoyo and Magescale probes with adapter)
• All versions with 2 probe inputs
• Display resolution selectable up to 0.00001 mm
• Simple or double display with bargraph, needle or no-tolerances
• Probe’s combination : (C1, C2, C1-C2 …)
• Direct measurement or Min, Max, Average, Max-Min…
• User friendly interface
• Very robust construction (Aluminium)
• USB connection «Keyboard» unidirectional and RS232 bidirectional
• No driver, no software to be installed
• Compatibility Excel and SPC
• Powered by the computer when connected by USB cable
